DVD burn error - "buffer too large"

Hello everyone!

Here is my problem.
I just bought a DVD-RW LG GSA 4166B, and this works fine to read DVDs, but when I try to write one, an error come out:



Here is the things I already tried:

- I tried to burn a DVD using the old and new driver (5.1 and 1.02)
- I updated the asp:

LOG0143: *****************************************************************
LOG0144: Starting ASPICHK installer on Sat Aug 19 13:37:18 2006
ASPICHK0438: OS = Windows NT (5.01.2600)
UPGRADE1004: c:\windows\system32\wnaspi32.dll dated 07/17/2002 12:20:56, 45056 bytes.
UPGRADE1062: c:\windows\system32\wnaspi32.dll version 4.71.2.0
UPGRADE1004: c:\windows\system\winaspi.dll dated 07/17/2002 19:22:26, 5600 bytes.
UPGRADE1062: c:\windows\system\winaspi.dll version 4.6.0.1021
UPGRADE1004: c:\windows\system32\drivers\aspi32.sys dated 07/17/2002 11:53:02, 16877 bytes.
UPGRADE1062: c:\windows\system32\drivers\aspi32.sys version 4.71.2.0
UPGRADE1004: c:\windows\system\wowpost.exe dated 07/17/2002 19:22:34, 4672 bytes.
UPGRADE1062: c:\windows\system\wowpost.exe version 4.6.0.1021
ASPICHK0522: Inconsistent version numbers among components
ASPICHK0592: ASPI installation has problems
LOG0218: Closing installer log on Sat Aug 19 13:37:18 2006
LOG0219: *****************************************************************

- I installed the IDETool and it's running as Ultra-DMA already

- I already saw all the threads about it (I made a search here and on google), and I spend a huge time reading all, but nothing worked.

What can I do?? I'm affraid that I'll need to buy a new one.


Thanks a lot!



Thanks man!
How can I fix that aspi problem?
Check the infotool log out:



And I didn't found this "core".

Another problem came out: I can't update the firmware now. On the device manager, the version is 5.1, but on the updater says 1.02 already. What?




*EDIT: I fixed the aspi problem installing the old version:

LOG0143: *****************************************************************
LOG0144: Starting ASPICHK installer on Sat Aug 19 16:31:21 2006
ASPICHK0438: OS = Windows NT (5.01.2600)
UPGRADE1004: c:\windows\system32\wnaspi32.dll dated 09/10/1999 15:06:00, 45056 bytes.
UPGRADE1062: c:\windows\system32\wnaspi32.dll version 4.6.0.1021
UPGRADE1004: c:\windows\system\winaspi.dll dated 09/10/1999 15:06:00, 5600 bytes.
UPGRADE1062: c:\windows\system\winaspi.dll version 4.6.0.1021
UPGRADE1004: c:\windows\system32\drivers\aspi32.sys dated 09/10/1999 15:06:00, 25244 bytes.
UPGRADE1062: c:\windows\system32\drivers\aspi32.sys version 4.6.0.1021
UPGRADE1004: c:\windows\system\wowpost.exe dated 09/10/1999 15:06:00, 4672 bytes.
UPGRADE1062: c:\windows\system\wowpost.exe version 4.6.0.1021
ASPICHK0582: ASPI is properly installed and is fully operational. A total of 3 host adapters have been detected.
LOG0218: Closing installer log on Sat Aug 19 16:31:22 2006
LOG0219: *****************************************************************


Thanks a lot again!



Here is the log:


luis ramos

*

Windows XP 5.1
IA32
WinAspi: File 'Wnaspi32.dll': Ver=4.60 (1021), size=45056 bytes, created 10/9/1999 12:06:00
ahead WinASPI: File 'C:\Arquivos de programas\Nero\Nero 7\Core\Wnaspi32.dll': Ver=2.0.1.74, size=164112 bytes, created 2/11/2004 13:54:32

NT-SPTI used
Nero Version: 7.2.3.2
Internal Version: 7, 2, 3, 2

Recorder: <HL-DT-ST DVDRRW GSA-4166B>Version: 1.02 - HA 1 TA 1 - 7.2.3.2
Adapter driver: <IDE> HA 1
Drive buffer : 2048kB
Bus Type : default (0) -> ATAPI, detected: ?
CD-ROM: <HL-DT-ST CD-RW GCE-8480B >Version: 1.03 - HA 1 TA 0 - 7.2.3.2
Adapter driver: <IDE> HA 1

=== Scsi-Device-Map ===
DiskPeripheral : Maxtor 6E040L0 NAR6 viadsk Port 0 ID 0 DMA: Off
DiskPeripheral : ST380011A 3.06 viadsk Port 0 ID 1 DMA: Off
CdRomPeripheral : HL-DT-STCD-RW GCE-8480B 1.03 viadsk Port 1 ID 0 DMA: Off
CdRomPeripheral : HL-DT-STDVDRRW GSA-4166B1.02 viadsk Port 1 ID 1 DMA: Off

=== CDRom-Device-Map ===
HL-DT-ST CD-RW GCE-8480B F: CDRom0
HL-DT-ST DVDRRW GSA-4166B G: CDRom1
=======================

AutoRun : 1
Excluded drive IDs:
WriteBufferSize: 74448896 (0) Byte
BUFE : 0
Physical memory : 511MB (523808kB)
Free physical memory: 146MB (149944kB)
Memory in use : 71
Uncached PFiles: 0x0
Use Inquiry : 1
Global Bus Type: default (0)
Check supported media : Disabled (0)

19.8.2006
ISO compilation
17:02:38 #1 Text 0 File Isodoc.cpp, Line 6427
Iso document burn settings
------------------------------------------
Determine maximum speed : FALSE
Simulate : FALSE
Write : TRUE
Finalize CD : TRUE
Multisession : FALSE
Burning mode : DAO
Mode : 1
ISO Level : 1 (Max. of 11 = 8 + 3 char)
Character set : ISO 9660
Joliet : TRUE
Allow pathdepth more than 8 directories : TRUE
Allow more than 255 characters in path : TRUE
Write ISO9660 ;1 file extensions : TRUE

17:02:38 #2 Text 0 File ThreadedTransfer.cpp, Line 531
ReadBuffer-Pipe got 72704KB of Memory

17:02:38 #3 Text 0 File Reader.cpp, Line 124
Reader running

17:02:38 #4 Text 0 File Writer.cpp, Line 113
Writer G: HL-DT-ST DVDRRW GSA-4166B running

17:02:38 #5 ISO9660GEN -11 File Geniso.cpp, Line 3312
First writeable address = 0 (0x00000000)

17:02:38 #6 Text 0 File Burncd.cpp, Line 3400
Turn on Disc-At-Once, using DVD media

17:02:39 #7 Text 0 File DlgWaitCD.cpp, Line 289
Last possible write address on media: 2298495 (510:46.45, 4489MB)
Last address to be written: 543663 (120:48.63, 1061MB)

17:02:39 #8 Text 0 File DlgWaitCD.cpp, Line 301
Write in overburning mode: NO (enabled: CD)

17:02:39 #9 Text 0 File DlgWaitCD.cpp, Line 2715
Recorder: HL-DT-ST DVDRRW GSA-4166B, Media type: DVD-R
Disc Manufacturer: GSC003 -
Disc Application Code: 64, Disc Physical Code: 193

17:02:39 #10 Text 0 File DlgWaitCD.cpp, Line 473
>>> Protocol of DlgWaitCD activities: <<<
=========================================

17:02:39 #11 Text 0 File ThreadedTransferInterface.cpp, Line 847
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 543664 (543664) = #543664/120:48.64
relocatable, disc pos for caching/writing not required/ required, no patch infos
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 543664 blocks [G: HL-DT-ST DVDRRW GSA-4166B]
--------------------------------------------------------------

17:02:39 #12 Text 0 File ThreadedTransferInterface.cpp, Line 1059
Prepare recorder [G: HL-DT-ST DVDRRW GSA-4166B] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc fixated
Tracks 1 to 1:
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 1113423872, ISRC ""
DAO layout:
===========
__Start_|____Track_|_Idx_|_CtrlAdr_|_RecDep__________
0 | lead-in | 0 | 0x41 | 0x00
0 | 1 | 0 | 0x41 | 0x00
0 | 1 | 1 | 0x41 | 0x00
543664 | lead-out | 1 | 0x41 | 0x00

17:02:39 #13 Text 0 File SCSIPassThrough.cpp, Line 39
SPTILockVolume - completed successfully for FCTL_LOCK_VOLUME

17:02:39 #14 Text 0 File SCSIPassThrough.cpp, Line 84
SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

17:02:39 #15 Phase 24 File dlgbrnst.cpp, Line 1730
Caching of files started

17:02:39 #16 Text 0 File Burncd.cpp, Line 4231
Cache writing successful.

17:02:39 #17 Phase 25 File dlgbrnst.cpp, Line 1730
Caching of files completed

17:02:39 #18 Phase 36 File dlgbrnst.cpp, Line 1730
Burn process started at 4x (5.540 KB/s)

17:03:09 #19 Text 0 File ThreadedTransferInterface.cpp, Line 2707
Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

17:03:09 #20 Text 0 File DVDR.cpp, Line 2869
Recording mode: Sequential Recording Mode

17:03:09 #21 Text 0 File DVDR.cpp, Line 3025
Start write address at LBA 0
DVD high compatibility mode: Yes

17:03:09 #22 Text 0 File Cdrdrv.cpp, Line 8995
---- DVD Structure: Physical Format Information (00h) ----
Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050
Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 0.0 (0)
Disc Size: 120 mm, Maximum Rate: <not specified> (F h)
Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable
Linear Density: 0,267 um/bit, Track Density: 0,74 um/track
Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW)
End Physical Sector Number of Data Area: 26127F h
End Sector Number in Layer 0: 0 h (LBN: FFFD0000 h, 4193920 MB)
Data in Burst Cutting Area (BCA) does not exist
Start sector number of the current Border-Out: 2FE10 h
Start sector number of the next Border-In: 2FFA0 h
Media Specific [16..63]:
00 20 01 02 04 06 08 00 - 00 00 00 00 00 00 00 00 ................
00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................
00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................

17:03:12 #23 SPTI -31 File SCSIPassThrough.cpp, Line 291
G: CdRom1: SCSIStatus(x00) WinError(87) NeroError(-31)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x2A 00 00 00 00 00 00 00 20 00 00 00
Sense Area: 0x00 00 00 00 00 00 00 00 00 00 00 00 00
Buffer x0a7e0000: Len x10000
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

17:03:12 #24 SPTI -31 File SCSIPassThrough.cpp, Line 291
G: CdRom1: SCSIStatus(x00) WinError(87) NeroError(-31)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x2A 00 00 00 00 00 00 00 20 00 00 00
Sense Area: 0x00 00 00 00 00 00 00 00 00 00 00 00 00
Buffer x0abb3e00: Len x10000
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

17:03:12 #25 Text 0 File MMC.cpp, Line 19747
Writer-Buffer for G: HL-DT-ST DVDRRW GSA-4166B reduced to 32768Bytes

17:03:12 #26 SPTI -31 File SCSIPassThrough.cpp, Line 291
G: CdRom1: SCSIStatus(x00) WinError(87) NeroError(-31)
Sense Key: 0x00 (KEY_NO_SENSE)
Sense Code: 0x00
Sense Qual: 0x00
CDB Data: 0x2A 00 00 00 00 00 00 00 10 00 00 00
Sense Area: 0x00 00 00 00 00 00 00 00 00 00 00 00 00
Buffer x0abb3e00: Len x8000
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

17:03:12 #27 CDR -31 File Writer.cpp, Line 302
Buffer too large
G: HL-DT-ST DVDRRW GSA-4166B

17:03:12 #28 Text 0 File ThreadedTransfer.cpp, Line 228
all writers idle, stopping conversion

17:03:12 #29 Text 0 File ThreadedTransfer.cpp, Line 222
conversion idle, stopping reader

17:03:13 #30 Text 0 File DVDR.cpp, Line 3265
EndDAO: Last written address was -1

17:03:13 #31 Phase 38 File dlgbrnst.cpp, Line 1730
Burn process failed at 4x (5.540 KB/s)


Existing drivers:
File 'Drivers\ASPI32.SYS': Ver=4.60 (1021), size=25244 bytes, created 10/9/1999 12:06:00
File 'Drivers\PXHELP20.SYS': Ver=2.03.28a, size=20640 bytes, created 5/12/2005 03:12:26 (Prassi/Veritas driver for win 2K)

Registry Keys:
HKLM\Software\Microsoft\Windows NT\CurrentVersion\WinLogon\AllocateCDROMs : 0 (Security Option)

====== *** Nero Burning ROM, History File *** ======


Thanks!



Thanks man, I'll try to use the clean pack.
And I already did the uninstallation of the IDE, but when I uninstall the secondary (the only that it can be done), all the drivers (CD-RW and the DVD-RW), disapear! And them I install the "IDE_MPD3014" file (that I download a time ago, to fix some HD problems), the drivers appears again. So I can't do the same way that tutorial does.

I don't know what to do, I'm desperate!


Thanks for your help!



Still nothing. I tried to use the clean, but nothing.
I tried to install the 1.01 version, instead of 1.02, but nothing, an IDE error come out, and when the installation finished, nothing happens.

There is some chance to work with the 1.01 driver? How can I install that, because when I unninstall the DVD-RAM, and reboot, the windows automatically install the 1.02 version.


Thanks.



This drive is new, I bought yesterday, and since I put on the pc, I couldn't bur any DVD. I never burn with this drive and nothing else on the pc have changed.
I think there is no way to burn with this drive, maybe it's broken. Is possible that you can do anything but burn a dvd with a drive?

And another thing, I have only 1,34gb free on the drive C:, 1,01gb on D: and 812mb on E:, that can influence?


Thanks.



I'm trying to burn some files, some are .iso and .avi. I tried to burn a 500 mb file only, but nothing.

I'll delete some files, and defrag the disk. I already use ccleaner.
I'll try to burn an image disc, and try another software too.

Thanks.



It worked!!
Thanks for you attention man! Very good software, on Alcohol it doesn't work, but with this one, worked perfectly!
But why I can't burn data with Nero? Very strange.

Thanks man!



Nero gives me the "large buffer", but Alcohol just ignore the disc.
I've updated the via controllers too, I installed the "VIA_HyperionPro_V509A".
I don't know why I can't burn on Nero, I thougt the problem was the DVD drive, but since I successful burned the image on imgburn, I don't have any idea about what can be wrong. And I don't have another for data, are you recommend one for test?


Thanks.



I tried, but it didn't worked .
I made it following these steps, and using this version of Nero, but nothing. I don't know what to do, and I can't format the pc, because I need to save some files on DVD before format.

Thanks a lot!

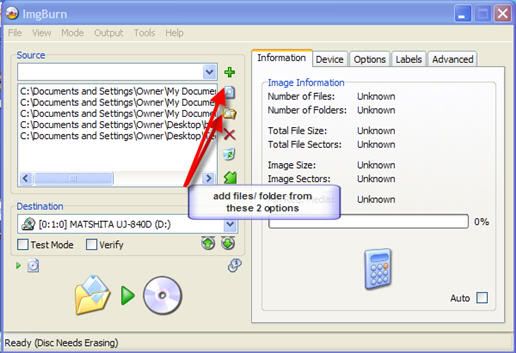

Thanks man! It worked perfectly! This is a very good software!
I'll reformat my pc this week, and I'll come back here to say if it worked or not.
Thank you very much for your attention man, this forum is very cool!
