How to JTAG

Discussion in 'Digital TV - UK & Europe' started by szafa, Oct 29, 2008.

  1. szafa

    szafa Guest

    Hi All

    I have Starview box and I don't know how to JTAG it because motherboard is other than to describe on this site http://www.freewebs.com/jtagg/. On my motherboard is 8 pin conector on the left site. Where I have to solder wires?

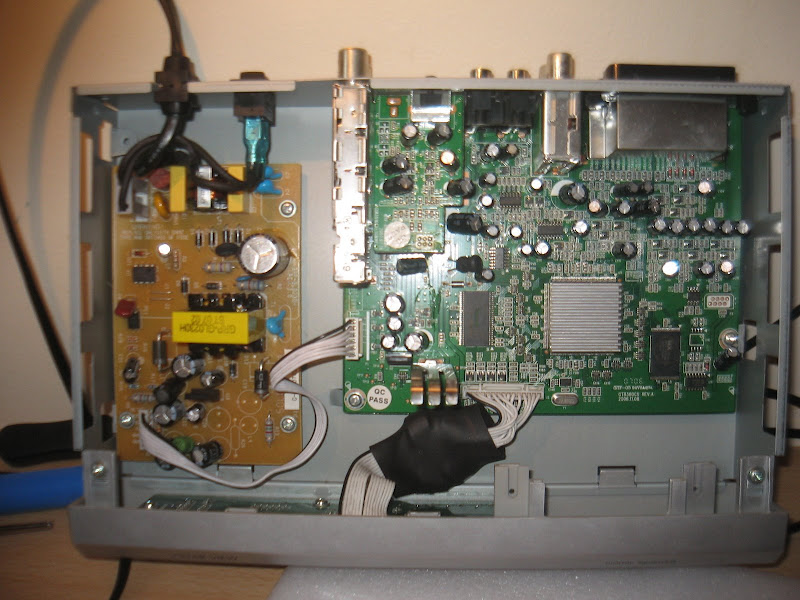

    Below is a picuter of my motherboard
    [​IMG]


    Regards

    Michal

    szafa, Oct 29, 2008
    #1
  2. sc0user

    sc0user Senior member

    Joined:
    May 31, 2007
    Messages:
    13,111
    Likes Received:
    0
    Trophy Points:
    116
    Am I correct in saying it a 1st generation SV or is it an SV2?

    sc0user, Oct 29, 2008
    #2
  3. szafa

    szafa Guest

    I think that this is 1-st a generation box has 25 vents.

    szafa, Oct 29, 2008
    #3
  4. sc0user

    sc0user Senior member

    Joined:
    May 31, 2007
    Messages:
    13,111
    Likes Received:
    0
    Trophy Points:
    116
    Here are the Jtag points for a genuine SV:

    TP12 = TCK is the white wire
    TP13 = TRST is the blue wire
    TP14 = TMS is the yellow wire
    TP15 = TD0 is the green wire
    TP16 =TD1 is the red wire
    VCC is as per all other SVs.

    You need to be very careful when soldering to the pads as they can be damaged quite easily. Going by your pic the Jtag points are by the Q.C. sticker on the main board.

    Last edited: Oct 29, 2008
    sc0user, Oct 29, 2008
    #4
