I'm using a fairly recently acquired Memorex DVD writer (16X, dual format, dual layer) model MX-500N (also known as model 5395-7746 code 3202-3292). WinXP dev manger lists it as Memorex 16X-DDL-IN. Sure has a lot of names! That makes it hard to find out if there are firmware updates available or not. So far I think not. I'm using the Nero software bundled with the DVD writer which includes Nero Express V6.6.0.8, and a LOT of other Nero stuff. I'm burning TDK CD-R rated at 52X. The package label says Manufactured in Taiwan. The Nero error log shows them as CDR code: 00 97 26 66; OSJ entry from: CMC Magnetics Corporation I have successfully burned at least one music CD (.wav files) at 48X and lower speeds but more recently I am successful only at 8X (lowest speed allowed by Nero). Maybe I was just lucky at 48X! At 16X I get one of several failures: Power Calibration error, Write error, or data verification error (I've been requesting verification since the writing has been suspect). Following the data verification error I looked at the CD and it looked like it had written less than 50% of the data but it claimed the write was completed successfully! Hmmmmmm...... I have also burned several Maxell DVD-Rs at 16X with video which have been fine! Used NeroVision Express 3 from the OEM bundle. Back to the CD-R problems. I've read several other posts about power calibration errors and it seems there are many things suggested including upgrading or downgrading. Since this is an OEM bundled software suite I don't think I can upgrade or downgrade. And if I needed to use one of the "cleaners", which one would work with my software? I used to use Roxio Easy CD/DVD Creator with my old, cheap, CD-RW drive (never had a failure in hundreds of burns). But I uninstalled the Roxio stuff before installing the Nero Suite. The Nero install instructions say to uninstall other CD/DVD recording suites (like Roxio). I also use Retrospect and I have Norton Ghost which can burn CDs and DVDs. iTunes and other apps can also burn. Are these other apps possible problems? I hope not! I will post the Nero error log from the most recent power calibration error at 16X (tried 3 times today). Thanks for any comments and suggestions! --Larry
Here's the log from the Power Calibration Error: Larry McGowan Home Windows XP 5.1 IA32 WinAspi: - ahead WinASPI: File 'C:\Program Files\Ahead\Nero\Wnaspi32.dll': Ver=2.0.1.74, size=164112 bytes, created 10/26/2004 9:35:32 AM Nero Version: 6.6.0.8 (Nero Express) Recorder: <Memorex 16X-DDL-IN> Version: 1.A3 - HA 1 TA 0 - 6.6.0.8 Adapter driver: <atapi> HA 1 Drive buffer : 2048kB Bus Type : via Inquiry data (1) -> ATAPI, detected: ATAPI Connected to MMC as unknown drive with class-nr : 1 Drive is autodetected - recorder class: Std. MMC recorder CD-ROM: <Memorex 16X-DDL-IN >Version: 1.A3 - HA 1 TA 0 - 6.6.0.8 Adapter driver: <atapi> HA 1 === Scsi-Device-Map === DiskPeripheral : WDC WD2500JB-00REA0 atapi Port 0 ID 0 DMA: On DiskPeripheral : WDC WD1200JB-00EVA0 atapi Port 0 ID 1 DMA: On CdRomPeripheral : Memorex 16X-DDL-IN atapi Port 1 ID 0 DMA: On === CDRom-Device-Map === Memorex 16X-DDL-IN D: CDRom0 ======================= AutoRun : 1 Excluded drive IDs: WriteBufferSize: 74448896 (0) Byte ShowDrvBufStat : 0 BUFE : 0 Physical memory : 511MB (523760kB) Free physical memory: 143MB (146932kB) Memory in use : 71 % Uncached PFiles: 0x0 Use Inquiry : 1 Global Bus Type: default (0) Check supported media : Disabled (0) 4.8.2006 Audio CD 2:53:57 PM #1 CDADOC -1 File Cdadoc.cpp, Line 1465 Audio item log info: Audio document burn settings: ============================= Burn mode: DAO, CD Text: On, Cache disk or network files: No, Cache small files: No, Cache files smaller than 65536 bytes. Audio Multisession: No List of audio tracks: ===================== <<Track list deleted>> Total size: 60:14.15 2:53:57 PM #2 Text 0 File Burncd.cpp, Line 2868 Memorex 16X-DDL-IN JustLink activated 2:53:57 PM #3 Text 0 File Reader.cpp, Line 127 Reader running 2:53:57 PM #4 Text 0 File AudioCompilationImpl.cpp, Line 842 DRM: StartDrmRecording(RealRec:1, ImageRec:0, Copies:1) DRM: Beginning burn process. 2:53:57 PM #5 Text 0 File Writer.cpp, Line 122 Writer Memorex 16X-DDL-IN running 2:53:57 PM #6 Text 0 File Burncd.cpp, Line 3153 Turn on Disc-At-Once, using CD-R/RW media 2:53:57 PM #7 Text 0 File DlgWaitCD.cpp, Line 260 Last possible write address on media: 359845 ( 79:59.70) Last address to be written: 270914 ( 60:14.14) 2:53:57 PM #8 Text 0 File DlgWaitCD.cpp, Line 272 Write in overburning mode: NO 2:53:57 PM #9 Text 0 File DlgWaitCD.cpp, Line 2339 Recorder: Memorex 16X-DDL-IN; CDR code: 00 97 26 66; OSJ entry from: CMC Magnetics Corporation ATIP Data: Special Info [hex] 1: D0 00 98, 2: 61 1A 42 (LI 97:26.66), 3: 4F 3B 47 (LO 79:59.71) Additional Info [hex] 1: 00 00 80 (invalid), 2: 00 00 00 (invalid), 3: 00 00 00 (invalid) 2:53:57 PM #10 Text 0 File DlgWaitCD.cpp, Line 438 >>> Protocol of DlgWaitCD activities: <<< ========================================= 2:53:57 PM #11 Text 0 File ThreadedTransferInterface.cpp, Line 830 Setup items (after recorder preparation) <<List of setup items deleted>> -------------------------------------------------------------- 2:53:57 PM #12 Text 0 File ThreadedTransferInterface.cpp, Line 1043 Prepare recorder [Memorex 16X-DDL-IN] for write in CUE-sheet-DAO DAO infos: ========== MCN: "" TOCType: 0x00; Session Closed, disc fixated Tracks 1 to 11: 1: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 0 352800 77785344, ISRC "" 2: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 77785344 78138144 136018512, ISRC "" 3: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 136018512 136371312 182277648, ISRC "" 4: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 182277648 182630448 256445616, ISRC "" 5: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 256445616 256798416 313559232, ISRC "" 6: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 313559232 313912032 365159760, ISRC "" 7: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 365159760 365512560 413573328, ISRC "" 8: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 413573328 413926128 472065216, ISRC "" 9: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 472065216 472418016 538306944, ISRC "" 10: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 538306944 538659744 595161840, ISRC "" 11: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 595161840 595514640 637544880, ISRC "" DAO layout: =========== __Start_|____Track_|_Idx_|_CtrlAdr_|_RecDep__________ -150 | lead-in | 0 | 0x01 | 0x00 -150 | 1 | 0 | 0x21 | 0x00 0 | 1 | 1 | 0x21 | 0x00 32922 | 2 | 0 | 0x21 | 0x00 33072 | 2 | 1 | 0x21 | 0x00 57681 | 3 | 0 | 0x21 | 0x00 57831 | 3 | 1 | 0x21 | 0x00 77349 | 4 | 0 | 0x21 | 0x00 77499 | 4 | 1 | 0x21 | 0x00 108883 | 5 | 0 | 0x21 | 0x00 109033 | 5 | 1 | 0x21 | 0x00 133166 | 6 | 0 | 0x21 | 0x00 133316 | 6 | 1 | 0x21 | 0x00 155105 | 7 | 0 | 0x21 | 0x00 155255 | 7 | 1 | 0x21 | 0x00 175689 | 8 | 0 | 0x21 | 0x00 175839 | 8 | 1 | 0x21 | 0x00 200558 | 9 | 0 | 0x21 | 0x00 200708 | 9 | 1 | 0x21 | 0x00 228722 | 10 | 0 | 0x21 | 0x00 228872 | 10 | 1 | 0x21 | 0x00 252895 | 11 | 0 | 0x21 | 0x00 253045 | 11 | 1 | 0x21 | 0x00 270915 | lead-out | 1 | 0x01 | 0x00 2:53:58 PM #13 Phase 36 File dlgbrnst.cpp, Line 1832 Burn process started at 16x (2,400 KB/s) 2:53:58 PM #14 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 0 (relocatable, no disc pos, no patch infos, orig at #0): write at #0 2:53:58 PM #15 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 1 (relocatable, no disc pos, no patch infos, orig at #0): write at #33072 2:53:58 PM #16 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 2 (relocatable, no disc pos, no patch infos, orig at #0): write at #57831 2:53:58 PM #17 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 3 (relocatable, no disc pos, no patch infos, orig at #0): write at #77499 2:53:58 PM #18 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 4 (relocatable, no disc pos, no patch infos, orig at #0): write at #109033 2:53:58 PM #19 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 5 (relocatable, no disc pos, no patch infos, orig at #0): write at #133316 2:53:58 PM #20 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 6 (relocatable, no disc pos, no patch infos, orig at #0): write at #155255 2:53:58 PM #21 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 7 (relocatable, no disc pos, no patch infos, orig at #0): write at #175839 2:53:58 PM #22 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 8 (relocatable, no disc pos, no patch infos, orig at #0): write at #200708 2:53:58 PM #23 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 9 (relocatable, no disc pos, no patch infos, orig at #0): write at #228872 2:53:58 PM #24 Text 0 File ThreadedTransferInterface.cpp, Line 2609 Verifying disc position of item 10 (relocatable, no disc pos, no patch infos, orig at #0): write at #253045 2:53:58 PM #25 Text 0 File Mmc.cpp, Line 16537 StartDAO : CD-Text - On 2:53:58 PM #26 Text 0 File Mmc.cpp, Line 21319 Set BUFE: JustLink -> ON 2:53:58 PM #27 Text 0 File Mmc.cpp, Line 16826 CueData, Len=192 21 00 00 41 00 00 00 00 21 01 00 00 00 00 00 00 21 01 01 00 00 00 02 00 21 02 00 00 00 07 14 48 21 02 01 00 00 07 16 48 21 03 00 00 00 0c 33 06 21 03 01 00 00 0c 35 06 21 04 00 00 00 11 0d 18 21 04 01 00 00 11 0f 18 21 05 00 00 00 18 0d 3a 21 05 01 00 00 18 0f 3a 21 06 00 00 00 1d 25 29 21 06 01 00 00 1d 27 29 21 07 00 00 00 22 1e 05 21 07 01 00 00 22 20 05 21 08 00 00 00 27 04 27 21 08 01 00 00 27 06 27 21 09 00 00 00 2c 24 08 21 09 01 00 00 2c 26 08 21 0a 00 00 00 32 33 2f 21 0a 01 00 00 32 35 2f 21 0b 00 00 00 38 0d 46 21 0b 01 00 00 38 0f 46 01 aa 01 01 00 3c 0e 0f 2:54:19 PM #28 SCSI -1106 File Cdrdrv.cpp, Line 1435 SCSI Exec, HA 1, TA 0, LUN 0, buffer 0x09EA0000 Status: 0x04 (0x01, SCSI_ERR) HA-Status 0x00 (0x00, OK) TA-Status 0x02 (0x01, SCSI_TASTATUS_CHKCOND) Sense Key: 0x03 (KEY_MEDIUM_ERROR) Sense Code: 0x73 Sense Qual: 0x03 CDB Data: 0x2A 0x00 0xFF 0xFF 0xD2 0x8E 0x00 0x02 0xAA 0x00 0x00 0x00 Sense Data: 0x70 0x00 0x03 0x00 0x00 0x00 0x00 0x0A 0x00 0x00 0x00 0x00 0x73 0x03 2:54:19 PM #29 CDR -1106 File Writer.cpp, Line 311 Power calibration error 2:54:19 PM #30 Text 0 File ThreadedTransfer.cpp, Line 228 all writers idle, stopping conversion 2:54:19 PM #31 Text 0 File ThreadedTransfer.cpp, Line 222 conversion idle, stopping reader 2:54:20 PM #32 Phase 38 File dlgbrnst.cpp, Line 1832 Burn process failed at 16x (2,400 KB/s) 2:54:20 PM #33 Text 0 File AudioCompilationImpl.cpp, Line 867 DRM: DRM burn session terminated. 2:54:20 PM #34 Text 0 File AudioCompilationImpl.cpp, Line 896 DRM: Closing entire DRM handling. Bye. Existing drivers: File 'Drivers\CDRALW2K.SYS': Ver=6.2.0.132 , size=24698 bytes, created 10/22/2003 9:15:02 PM File 'Drivers\PXHELP20.SYS': Ver=2.03.28a, size=20640 bytes, created 10/26/2005 1:12:48 PM (Prassi/Veritas driver for win 2K) File 'Drivers\InCDfs.SYS': Ver=4, 3, 12, 0, size=99200 bytes, created 1/27/2005 6:08:02 PM (InCD4 driver for win NT/2K/XP) File 'Drivers\InCDpass.SYS': Ver=4, 3, 12, 0, size=28928 bytes, created 1/27/2005 6:07:34 PM (InCD4 driver for win NT/2K/XP) File 'Drivers\InCDrec.SYS': Ver=4, 3, 12, 0, size=8704 bytes, created 1/27/2005 6:08:08 PM (InCD4 driver for win NT/2K/XP) File 'Drivers\atapi.sys': Ver=5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), size=95360 bytes, created 8/3/2004 10:59:42 PM (Adapter driver for rec) Registry Keys: HKLM\Software\Microsoft\Windows NT\CurrentVersion\WinLogon\AllocateCDROMs : 0 (Security Option)
Update Nero from here, both packages http://httpdl1.usw.nero.com/software/Nero6/Nero-6.6.0.18_no_yt.exe Package 2 http://httpdl1.usw.nero.com/software/Nero6/NVE-3.1.0.21_no_yt.exe These are horrible discs, try Verbatim or Sony (made in japan) You have Roxio installed, it clashes with Nero, to remove, run this zapper http://www.softpedia.com/get/Tweak/Uninstallers/Roxio-Zap.shtml
hello, to add to the above post, i would also recommend maxell (made in japan) cd's, all of my maxell's code out as taiyo yuden peace
@larrymcg Looks like you may have the latest firmware on your drive. I too would recommend the Maxell -mij - Taiyo's and are great. Made in Japan Fuji's also are made by Taiyo. Usually the only 2 brands of cd's I use. Watch the Verbatim cd's - they are usually made by CMC. My luck hasn't been that good with them. edit: typos per usual
@binkie7, Karen, Here I am blissfully using these discs and not knowing who makes them (suddenly shudders at the thought)

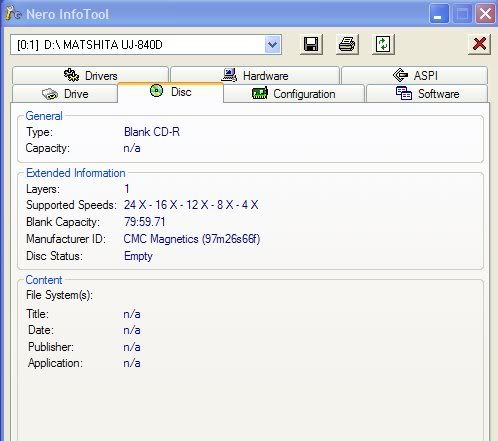

LOL - last few packs over the years have all been CMC here in the states unless you can find the data life plus cd's from Verbatim. I get anything from burn failures to the burn speed being auto reduced. Here's a pic of my last verb cd's:
@binkie7, Karen, when you run Nero Info Tool, how long does it take to display the info you have illustrated.
Gwendolyn, It looks like the two updates you suggested are for Nero and NeroVision Express. Can I do the updates even though the ones I have are from an OEM bundle? That bundle has lots of other apps in it also. Things like: Media Player, BackItUp, MediaHome, ShowTime, Recode, Cover Designer, PhotoShow Elite, and the Tool Kit (CD-DVD Speed, Drive Speed, InfoTool)and of course the SmartStart app. Can I update these too? I'll try the Roxio zapper. I find the discussions about which CDs are best interesting. No two people agree. I find lots of folks saying Verbatim and Sony (made in Japan) are the best. A response to one of my earlier posts claimed that the TDKs I'm using are also recommended. And general agreement that CMC disks are very bad. I didn't realize my TDKs were made by CMC. In any case, I think I'll try some Maxell's or Sony's (made in Japan). Many of my TDKs have turned into coasters! As an experiment, after getting the Power Calibration error on a CD, I reburned the same project on that same disk at 8KB with verification and it was fine. I guess the error occurrs before the disk is turned into a coaster! Thanks for the info, --Larry
@larrymcg Depending on what your original oem disc of Nero came w/ the updates will be ok. You just may not have the opinions for Recode and Vision etc. Depends - some have full access of Nero - some don't. CD's are different from DVD's - what may be a good brand for DVD's may differ for CD's. Different dye is used for CD's too for 1 thing. Wish I could give you more specifics but I'm pretty limited there. Taiyo Yuden was one of the 1st to 'prefect' cd's and for me have stood the test of time. Many years later still playing well. Verbatim DVD's w/ the MCC codes & dye are great but CD's may be a different story.
I've updated via the links supplied by Gwendolin. Worked fine! Thanks. The Roxio Zap program claims it is for zapping versions 4 and 5 and should not be used if version 6 is installed. Well, I had v6 but have uninstalled it. I'm not sure whether using the zapper is OK or not. The use license starts off with these words: ---------------------------------------------- THIS PROGRAM WILL REMOVE/DAMAGE OTHER ADAPTEC AND ROXIO SOFTWARE NOT LIMITED TO BUT INCLUDING GOBACK, PHOTOSUITE, VIDEOWAVE. THIS MEANS COMPONENTS FROM THOSE PROGRAMS WILL BE REMOVED AND YOU WILL NEED TO REINSTALL THEM ONCE THIS APPLICATION HAS BEEN RUN IF THEY EXIST. This application will ZAP files, directories and registry entries associated with Easy CD Creator 4 and 5 and should not be run on a machine which has Easy CD and DVD Creator 6 currently installed. ----------------------------------------------- Essentially it says it will do bad stuff to apps and doesn't give a full list of them. Seems dangerous to me. Hmmmm...... There is another Roxio driver and some inCD stuff too. Some folks think the inCD stuff is evil. They are: Cdr4_xp and Cdralw2k (noted by Gwendolin) and inCDfs, inCDPass, incdrm, inCD rec Suggestions?? --Larry PS: I got some Fuji CD-R discs because they were the ones I could find that were made in Japan and sure enough they are taiyo yuden. I can write music CDs at 32X on the Fuji's.
@larrymcg For Roxio 6 here's a link for the clean tool (roxizap) for that version: http://kb.roxio.com/content/kb/EE6000061 I don't know if version 6 will give you the same warning about other Roxio software or Adaptec. Roxio has a driver(s) that might conflict w/ Nero - that why it's listed under Existing drivers Funny though is Nero's InCD is listed there too. If you are not using it you can install it too and run the clean tool for it: http://ww2.nero.com/nero6/enu/InCD_CleanTool.html Programs leave garbage behind even after uninstalling that can clog up the registry or still cause conflicts depnding on what's left behind.
binkie7, It turns out that the Roxio Zapper for version 6 is actually the one for v4 and 5. It gives instructions that you should uninstall v6 and then, BEFORE rebooting, run the zapper. Well, I'd uninstalled v6 some months ago. So I forced a system restore point and then ran the Roxio zapper and the inCD clean tool. At least nothing crashed! After doing some experimenting I'll post results. --Larry
@larrymcg Txs for the info! Sounds like Roxio needs to change the wording in the zap user license. Keep us posted. Glad to hear you were able to find the Taiyo Fuji cd's- not always easy esp. in my area.
After doing the suggested Nero updates and zapping Roxio and Cleaning out inCD, my initial test were excellent. I sucessfully recorded music CDs on the TDK media (made by CMC) with verification at 24X and 16X. I'd had nothing but failures before. And then tonight I got a Power Calib Error at 24X and verification failures at 16X on the TDK. Soooooo, I guess nothing really got better. I did succeed again at 32X with the Fuji (made by taiyo yuden) media. So, I'll stick with 8X with the TDK (until they are gone) and get more of the taiyo yuden discs. I see that you can get them on-line at pretty good prices. They seem to be generic but made by taiyo yuden. Thanks for all your help, Larry
It looks like your power calibration errors are mainly due to the CMC TDK's. The Taiyo Yudens you can buy online can be the 'real' deal. Just use a reputable site for them. If you are in the US here's a good one (I buy Taiyo DVD's from here) http://supermediastore.com
